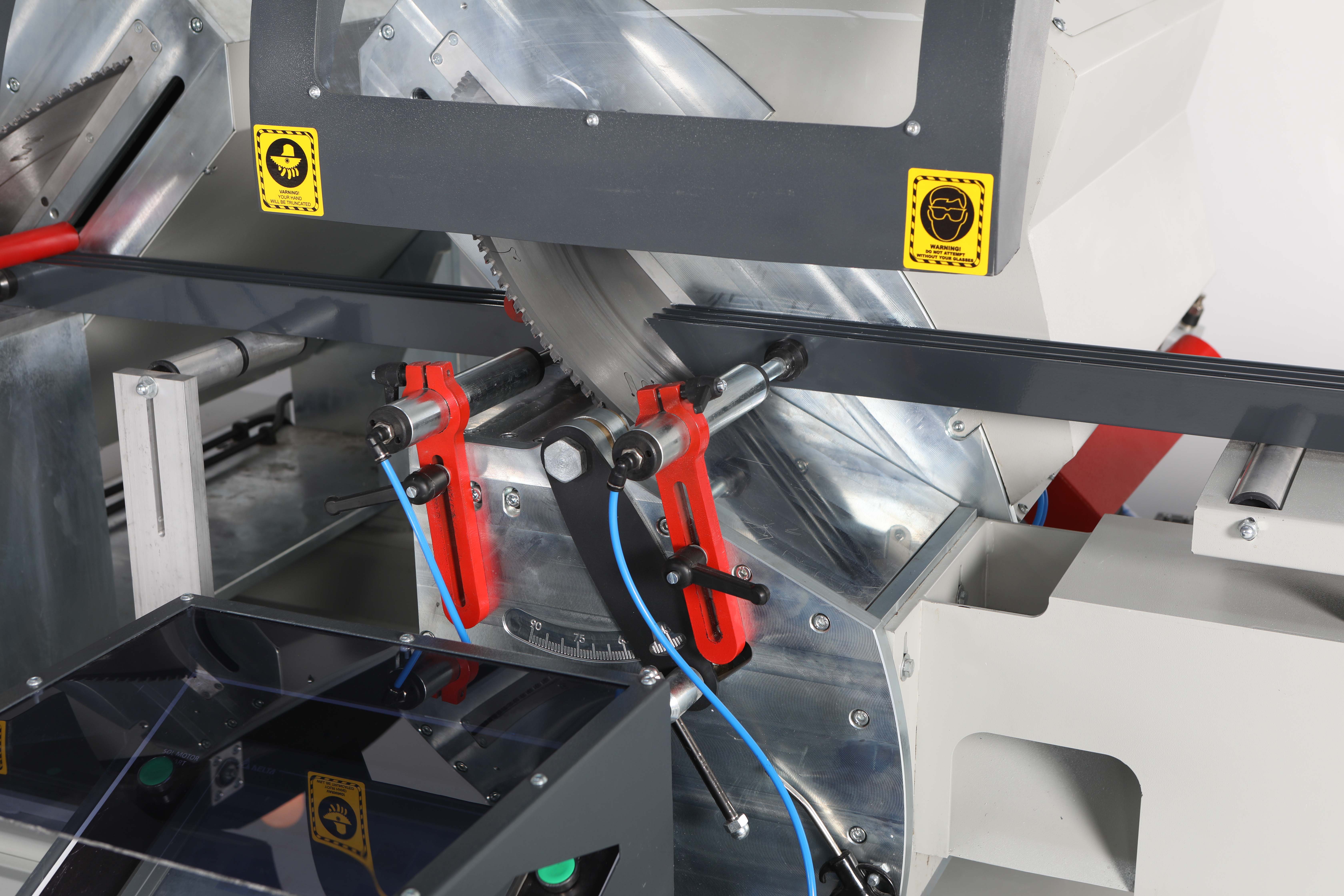

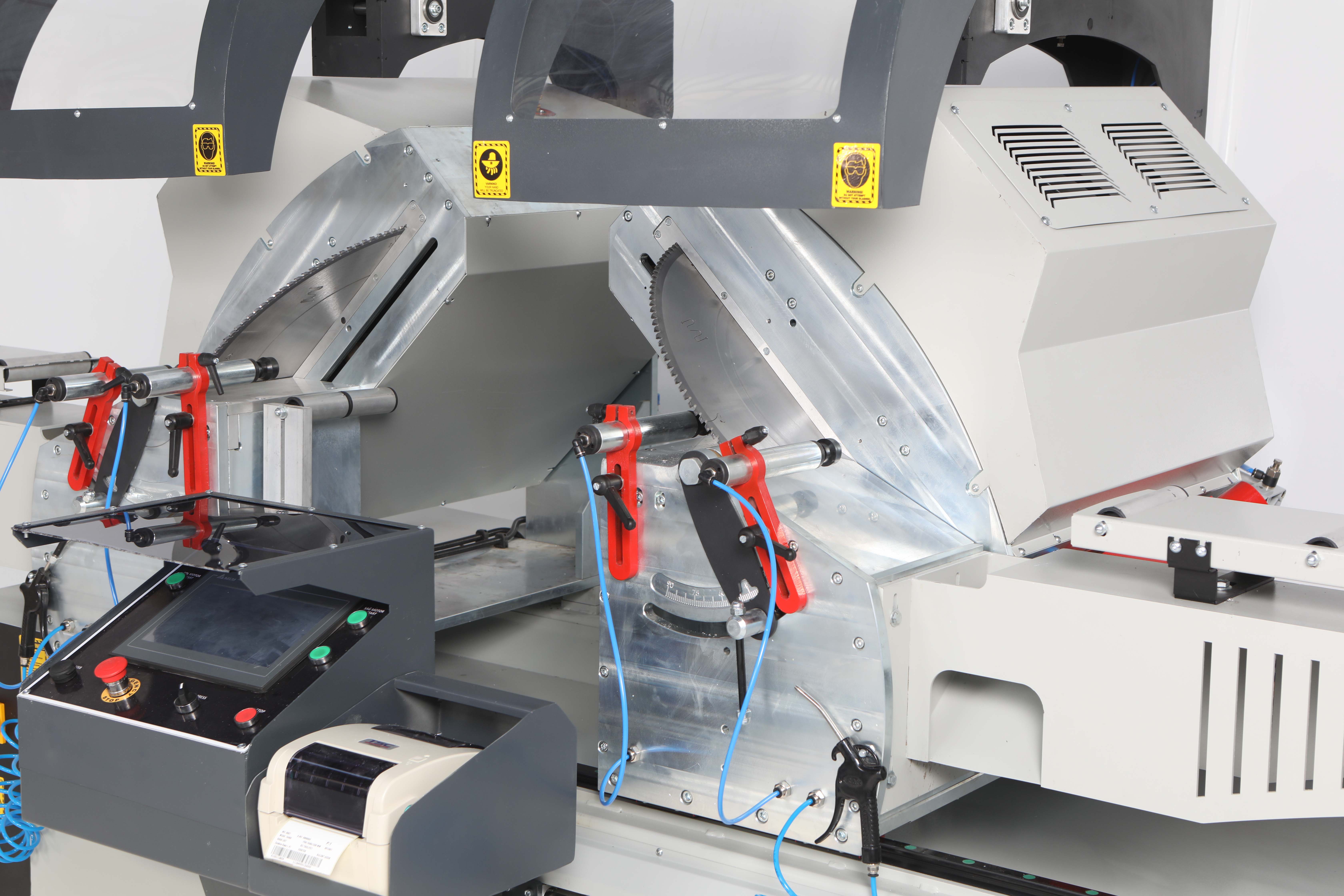

OST-460 Aluminum & uPVC Double Head Cutting Machine (⌀600MM SAW)
Aluminum Machine
OST-460 is a double head cutting machine with a fully automatic control system that can cut uPVC and Aluminum profiles straight or at an angle.
- Hydro-pneumatic Hydrochek controlled saw movement
- Cutting accuracy +/- 0.1 mm
- Automatically adjustable to two angles 90° and 45° inward
- Automatic slicing at 90° angle

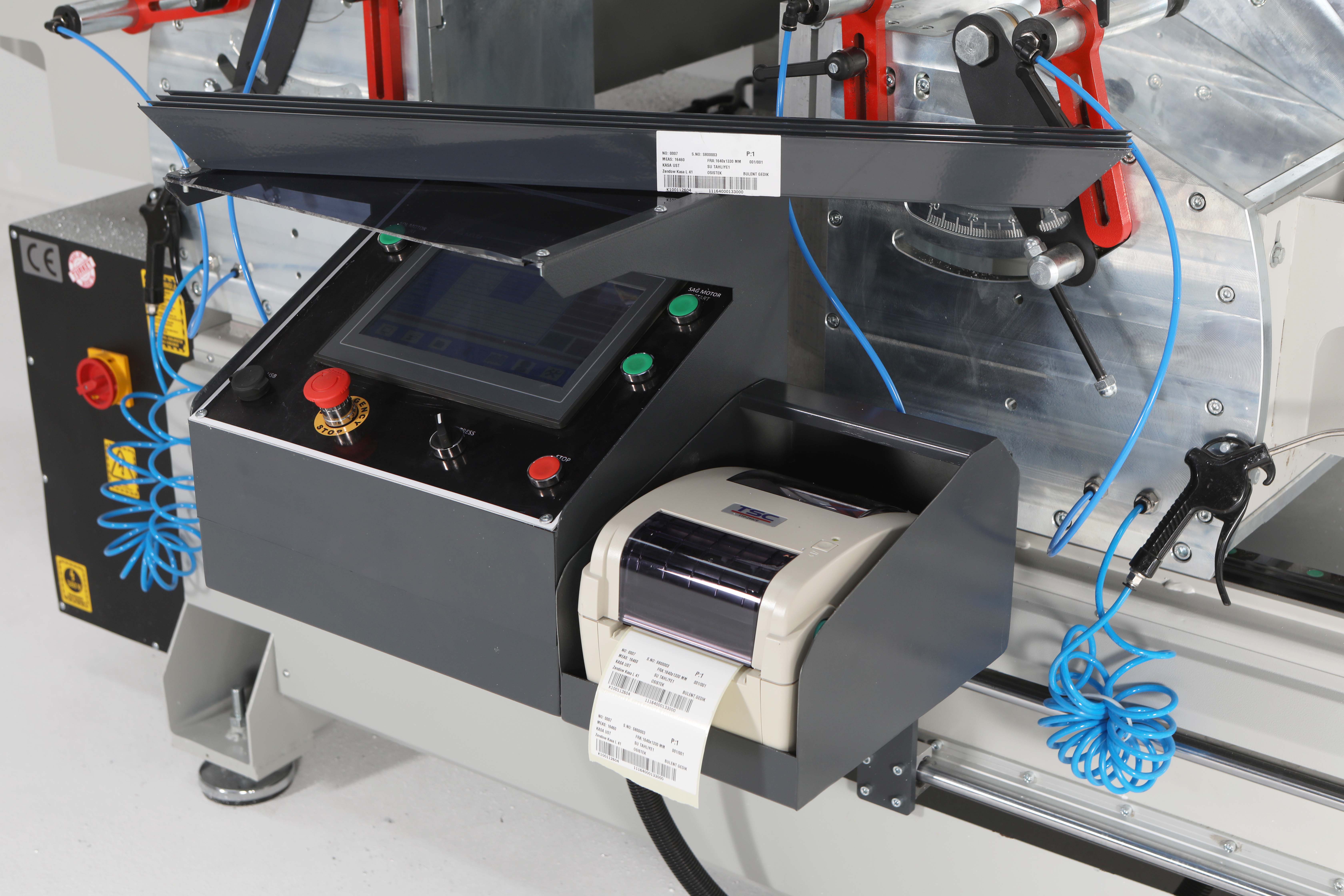

- 10″ touch color panel display
- Providing remote connection and technical support

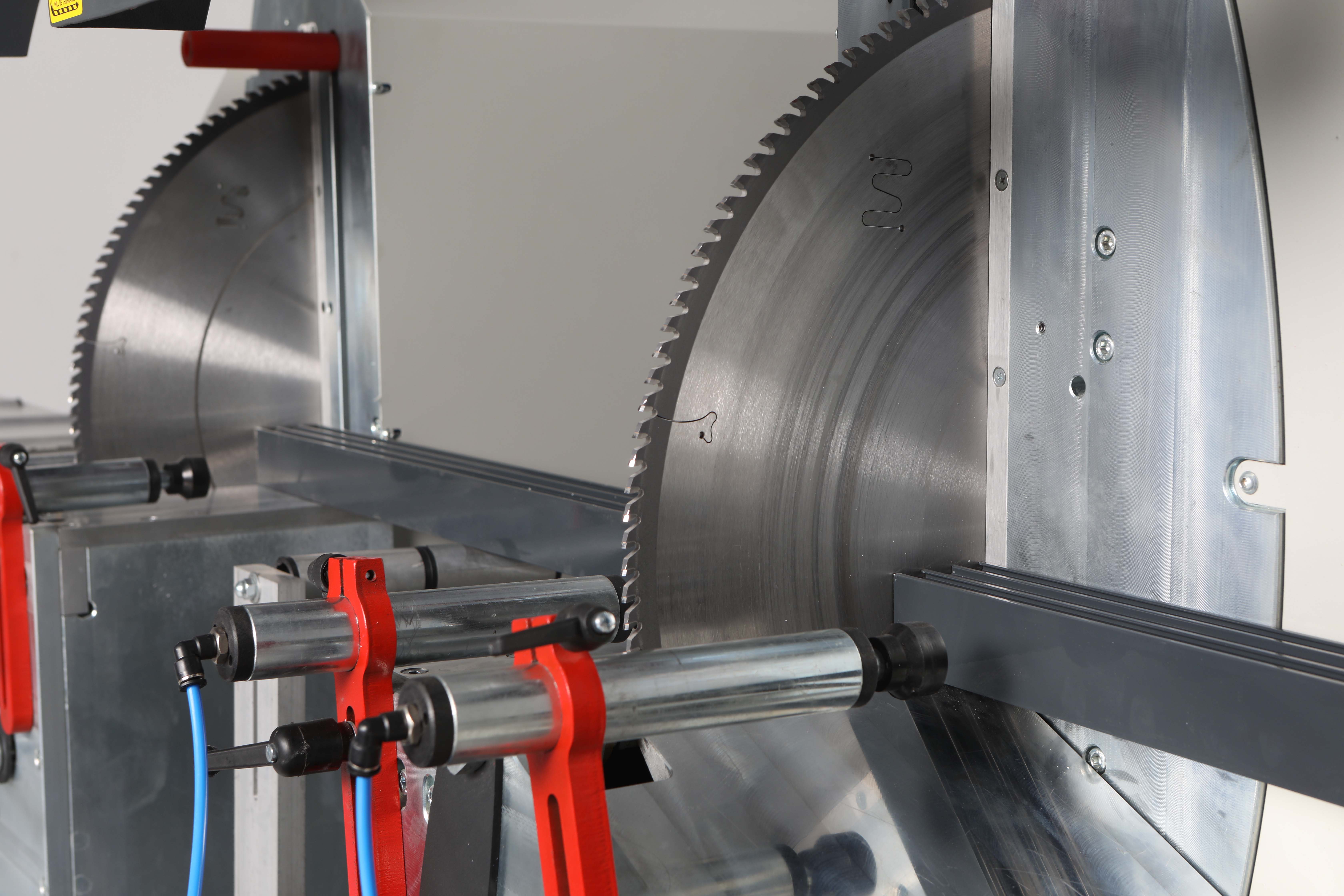

- 2x 600mm saw blade
- Servo motor motion system
- Saw exit distance is 215 mm and 70mmx3 profile cutting
- Hydrocheak saw speed adjustment
- 9.5 Meters cutting feature
- Multi-language support
- Unlimited measurement memory capacity
- Spray saw cooling system
- 2 x vertical vices
- 4 x horizontal vices
Option
- Barcode printer
- Data transfer via USB memory stick
| Power Supply | 380 V, 3 ph, 50-60 Hz |
| Total Power | 7,3 kw, 14 A |
| Air Pressure | 6-8 Bar |
| Air Consumption | 30 It. / min. |
| Saw Motor Speed | 2810 rpm |
| Max. Profile Dimensions | 285x215 |
| Machine Width | 1110 mm |
| Machine Height | 1580 mm |
| Machine Length | 7375 mm |
| Machine Weight | 1085kg |
