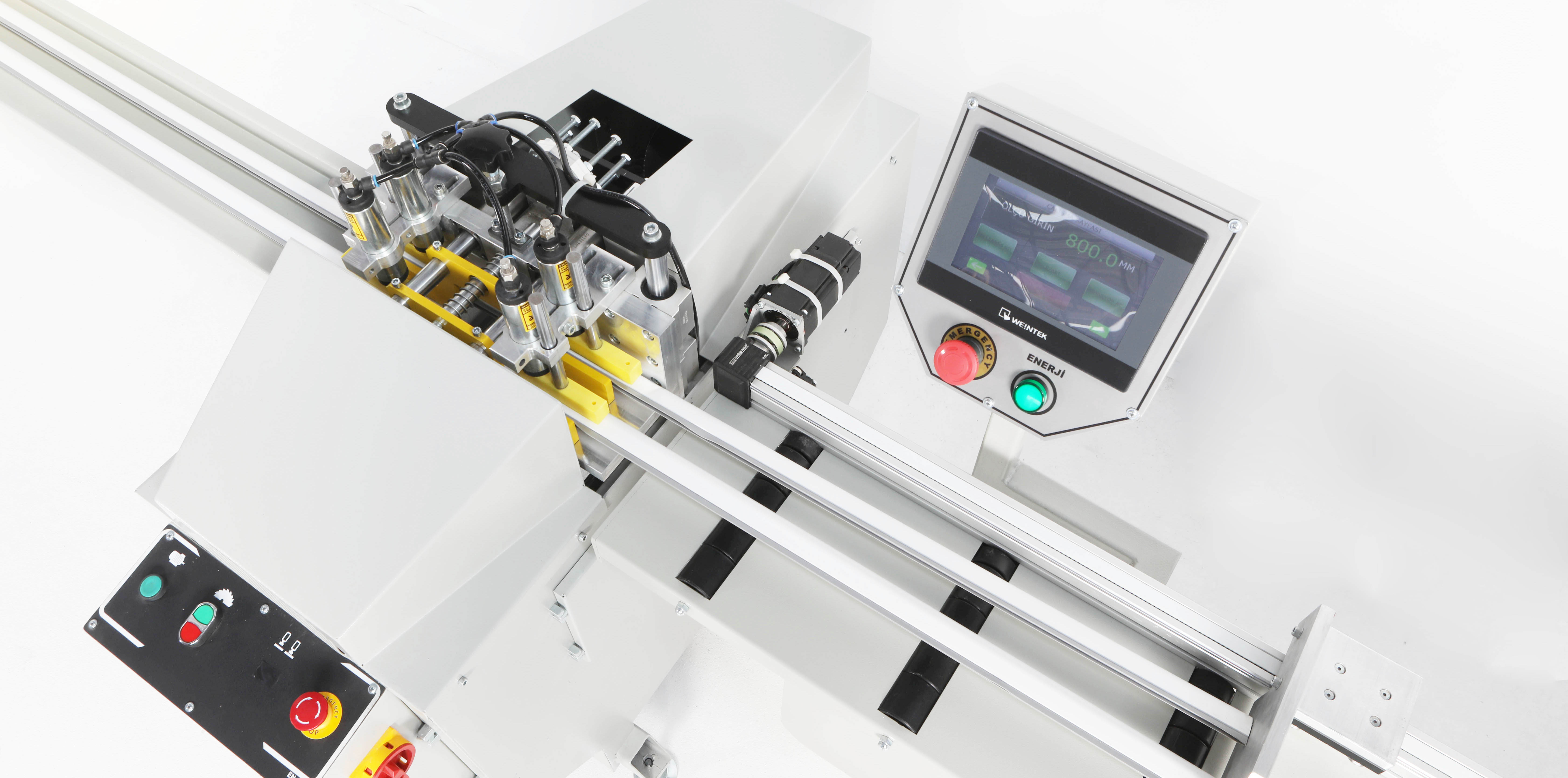

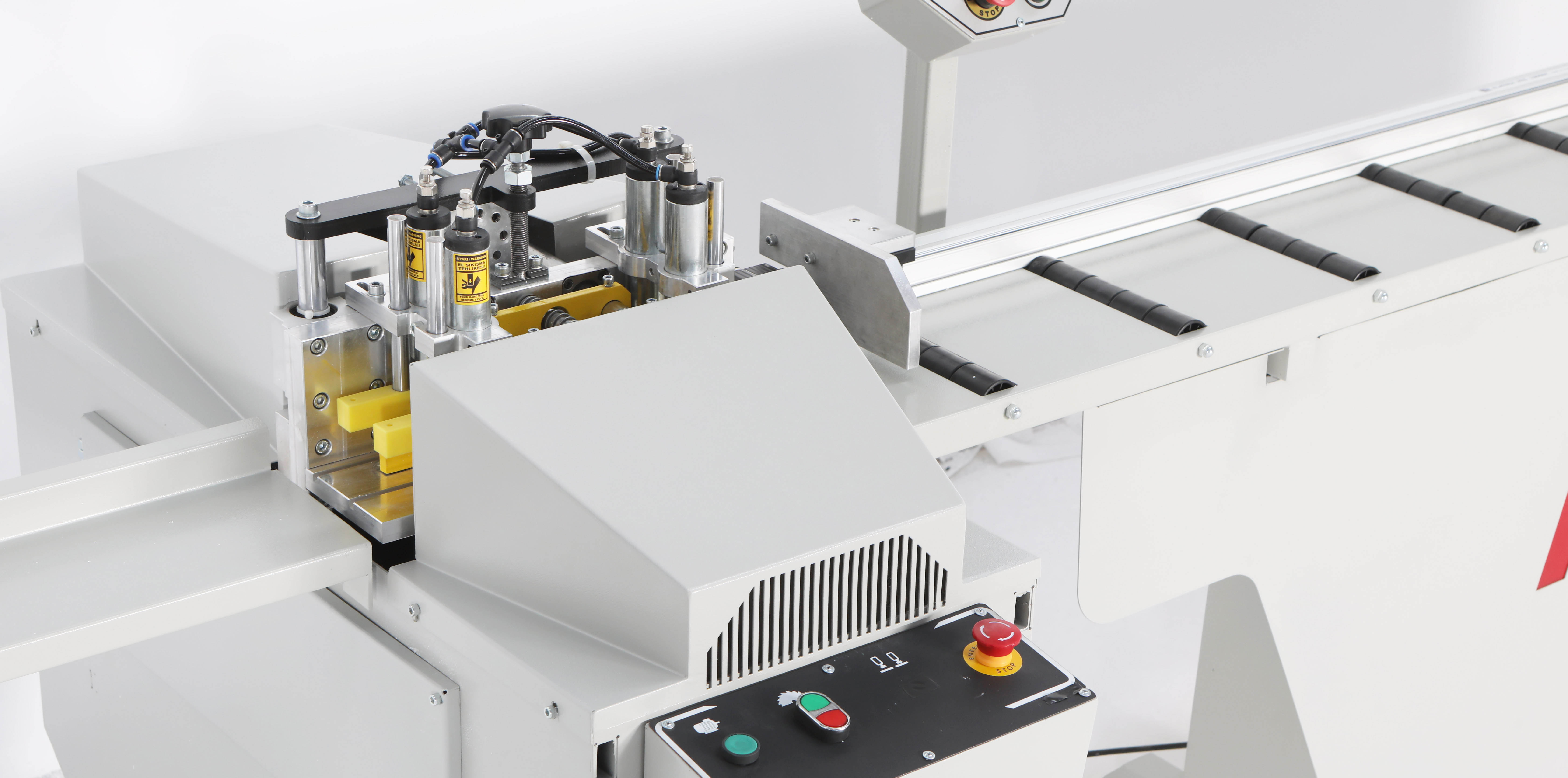

OST-30 Automatic PVC Profile Glazing Bead Cutting Machine
PVC Machine
Designed for 45-degree cutting of glazing beads
- 2 HSS saw blades available
- Ability to cut 2 glazing bead simultaneously

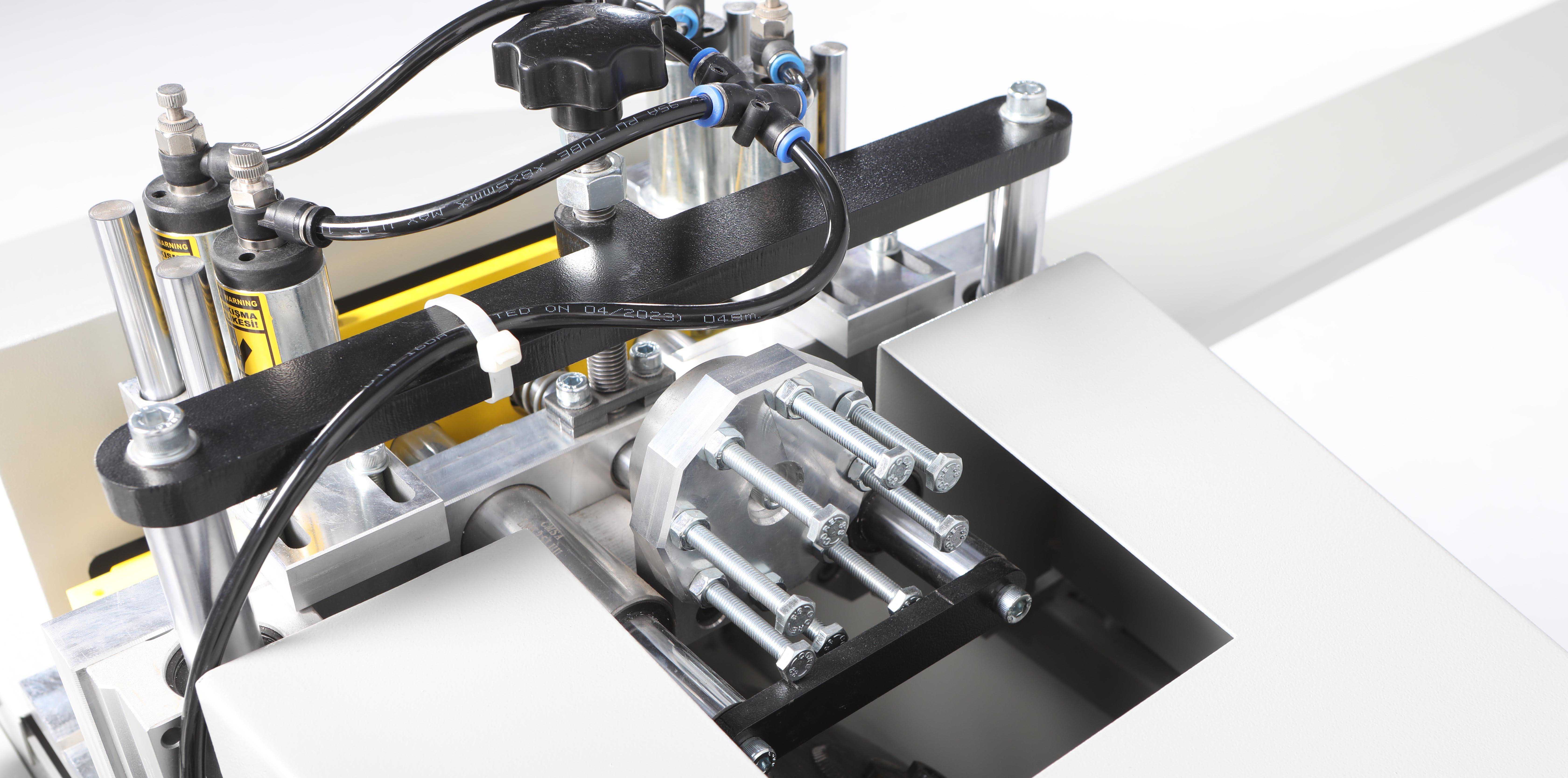

- Pneumatic clamping system
- 10 different glazing bead cutting options with adjustable settings
- Cutting speed can be adjusted via the regulator on the control panel
- 3-meter right/left conveyor and metered conveyor system for long glazing beads
Options
- Precise cutting speed adjustment with the Hydrocheck system
- Diamond-tipped saw for cutting aluminum strips
- Servo-controlled digital conveyor
| Power Supply | 400 V, 3 ph, 50-60 Hz |
| Total Power | 1.2 kw, 3.2 A |
| Air Pressure | 6-8 Bar |
| Air Consumption | 25 It. / min. |
| Saw Motor Speed | 2810 rpm |
| Machine Width | 1171 mm |
| Machine Height | 1107 mm |
| Machine Length | 653 mm |
| Machine Weight | 150kg |
