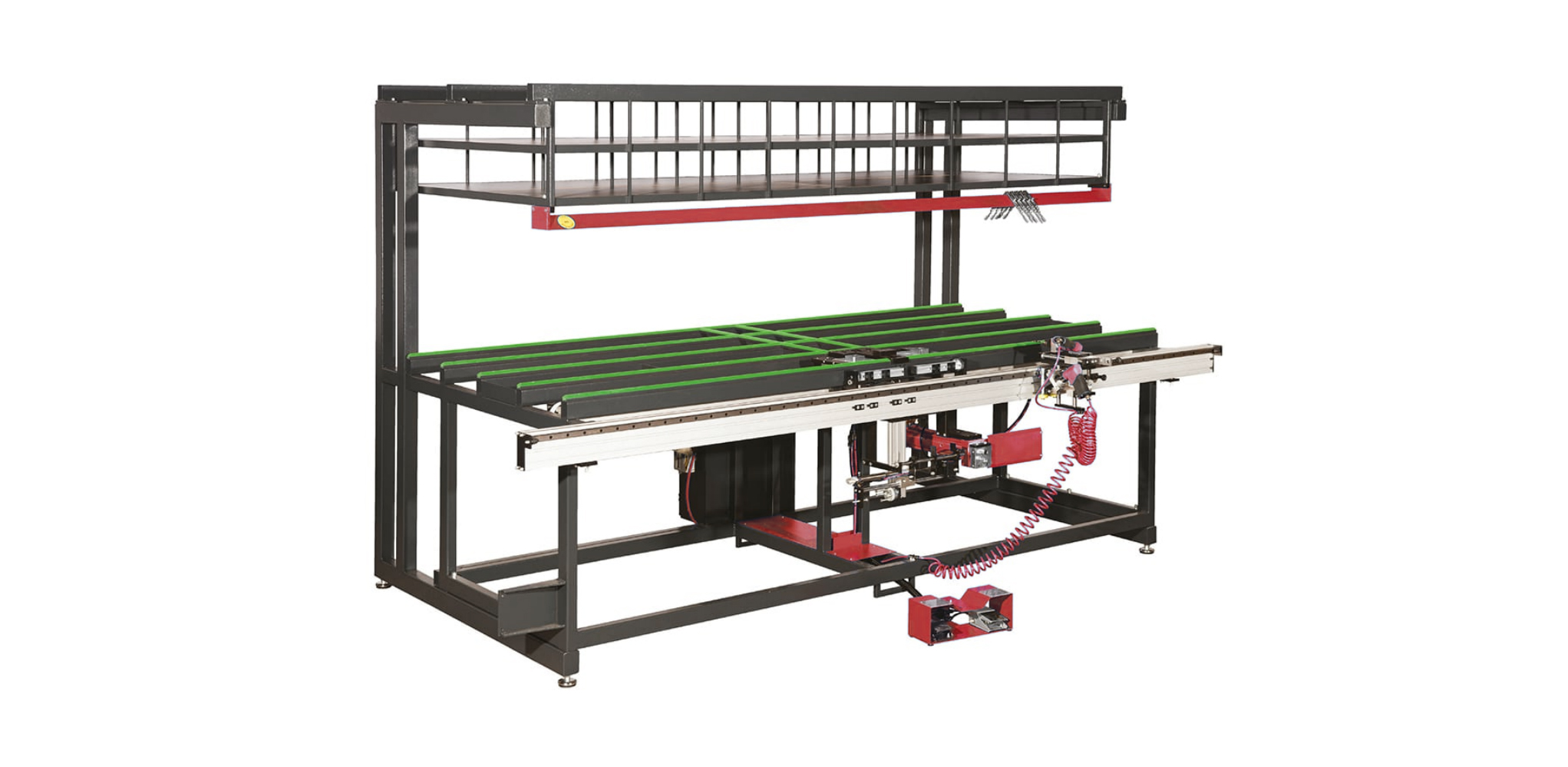

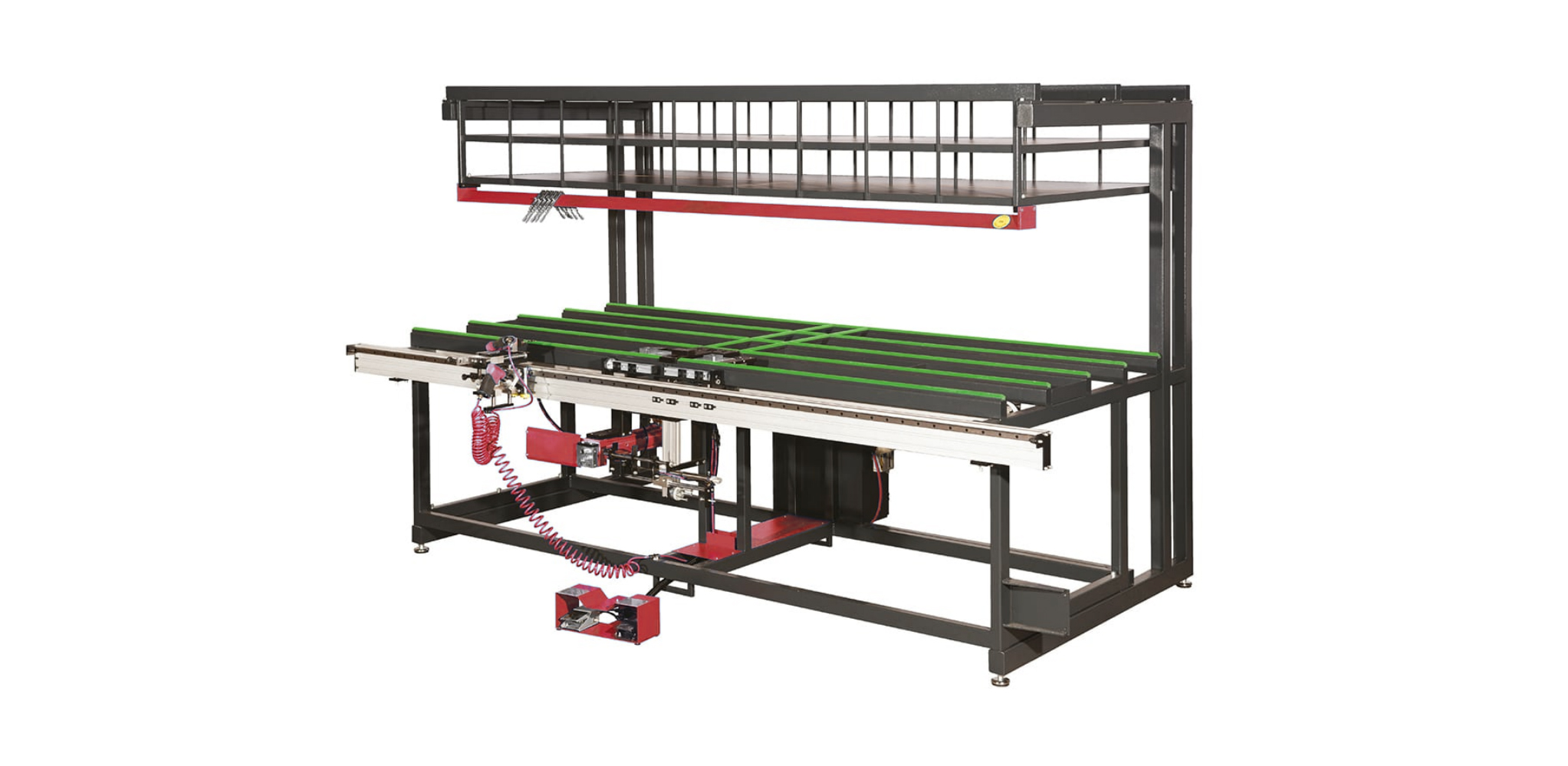

OST-700 Sash Hardware Mounting Table
PVC Machine
Designed to assembly Tilt & Turn hardware systems on different types, various sizes of window & door sash profiles. Provides speedy,
high quality and standard assembling.
- Automatic centering
- Automatic measurement of espagnolettes and scissors
- Punch for espagnolette and scissor stay cutting
- Manual screwing
- Manual hinge drilling with template
| Power Supply | 380 V, 3 ph, 50-60 Hz |
| Total Power | 3 kw, 7.2 A |
| Air Pressure | 6-8 Bar |
| Air Consumption | 250 It. / min. |
| Spindle Motor Speed | 2360 rpm |
| Max. Profile Dimensions | 300x180 |
| Machine Width | 2059 mm |
| Machine Height | 2025 mm |
| Machine Length | 3075 mm |
| Machine Weight | 460kg |
