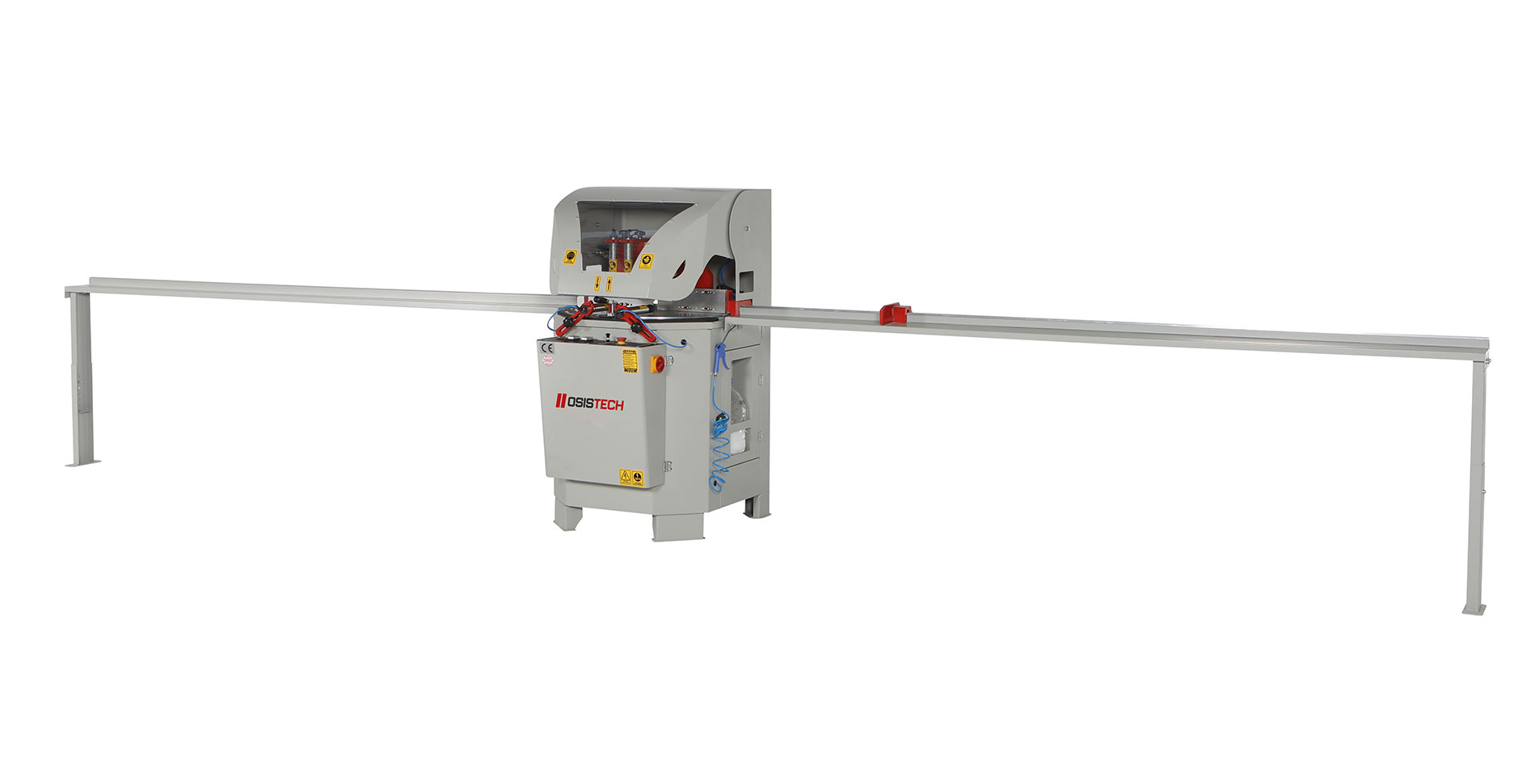

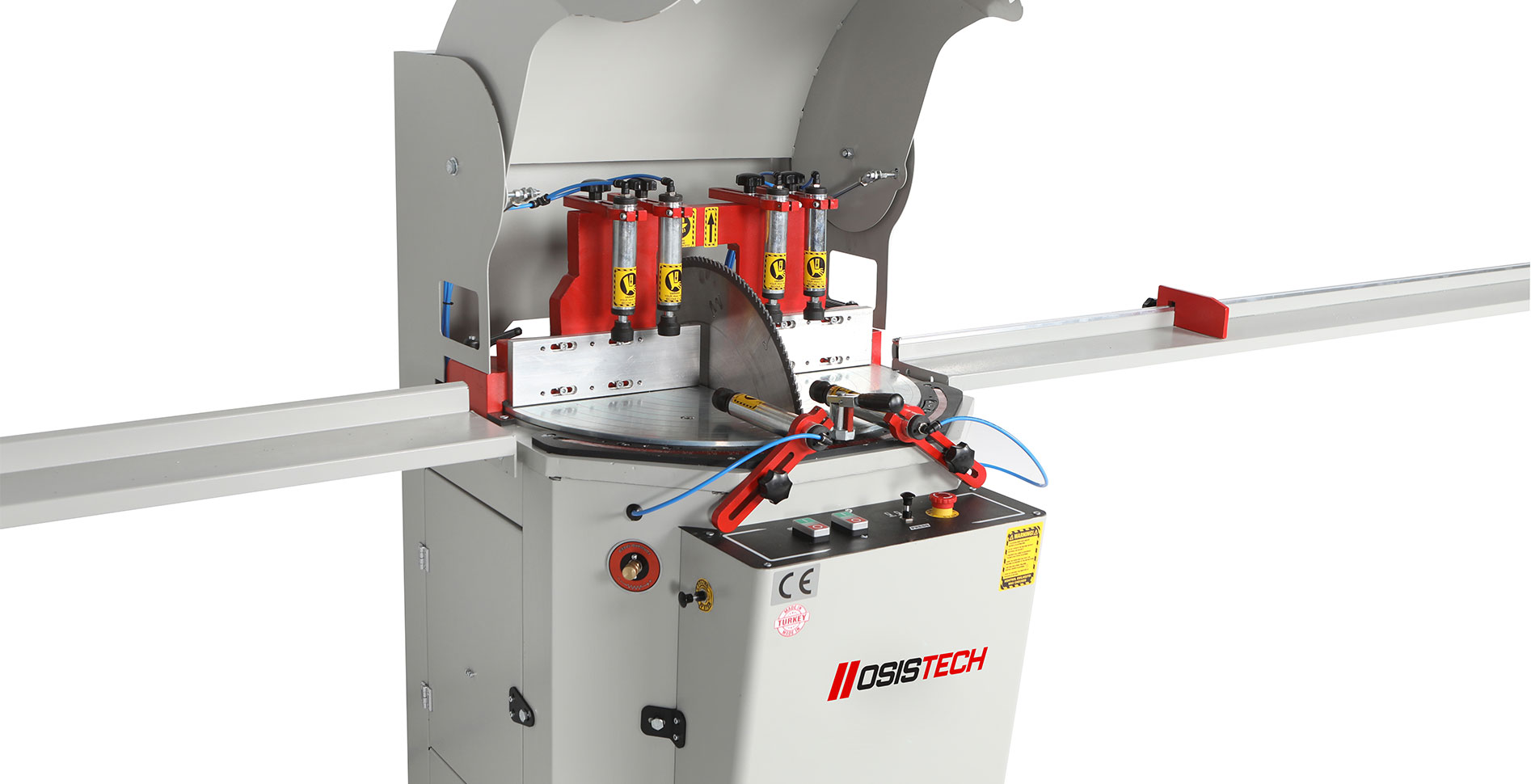

OST-46 Aluminum UPVC Undercut Cutting Machine (⌀600Mm Saw)
PVC Machine
- It is used for cutting aluminum and UPVC profiles.
- Hydro-Pneumatic cutting process,
- It can cut at fixed angles of -60°, -45°, -30°, -22.5°, -15°, 0°, +15°, +22.5°, +30°, +45°, +60° to the right and left.
- Pneumatic, vertical and horizontal press

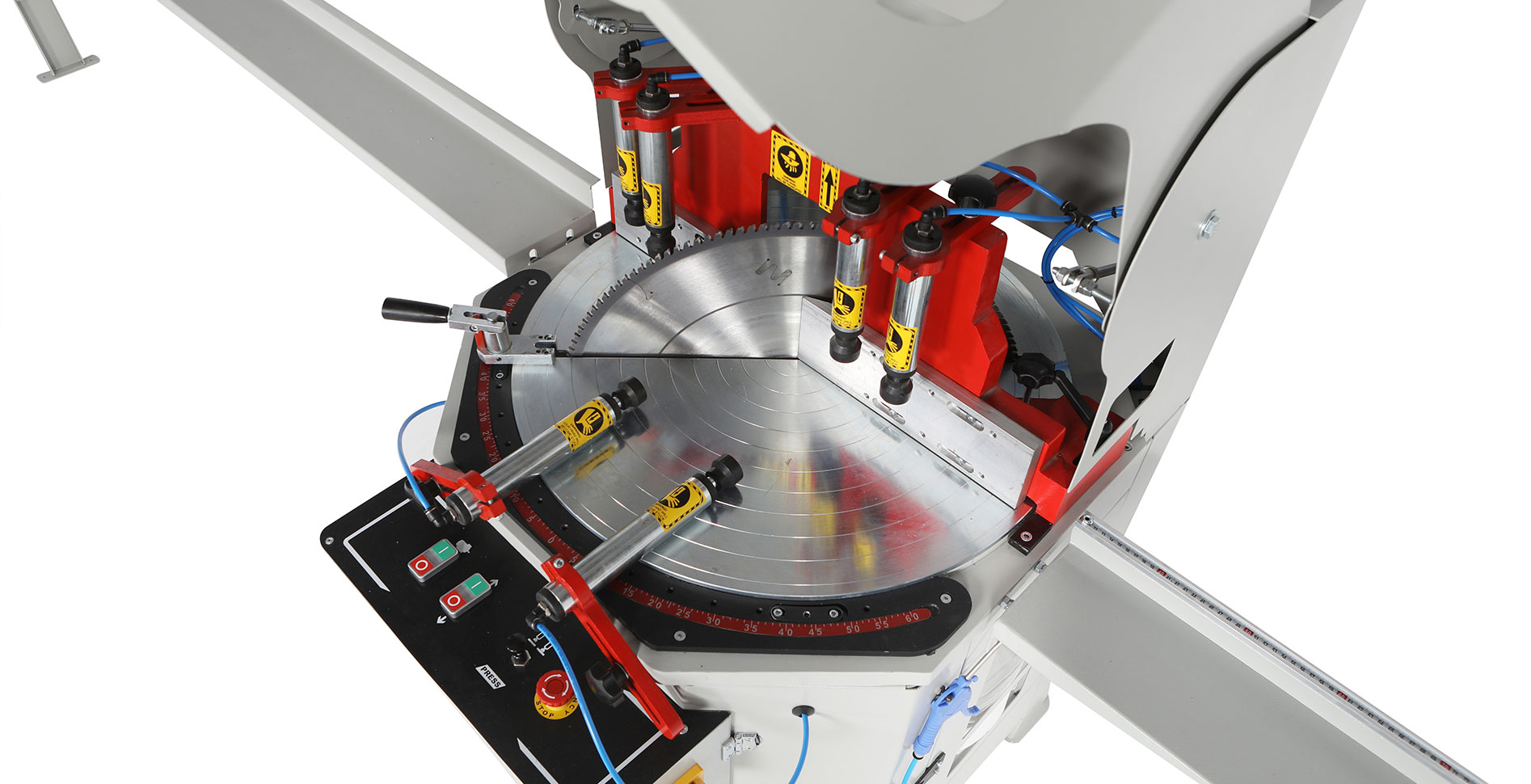

- Ø600 Diamond Tipped Aluminum Saw Blade.
- Roller Conveyor Available. (Right-Left 3m)
- Oil Spray System.
- It can make precise cutting thanks to its 2.2KW motor and hydrocheak
| Power Supply | 380 V, 3ph, 50-60 Hz |
| Total Power | 2.2kW, 3.3A |
| Air Pressure | 6-8 Bar |
| Air Consumption | 41 It. / min. |
| Saw Motor Speed | 2810 rpm |
| Max. Profile Dimensions | 3300mm × 360mm |
| Machine Width | 946 mm |
| Machine Height | 1460 mm |
| Machine Length | 770 mm |
| Machine Weight | 420 kg |
