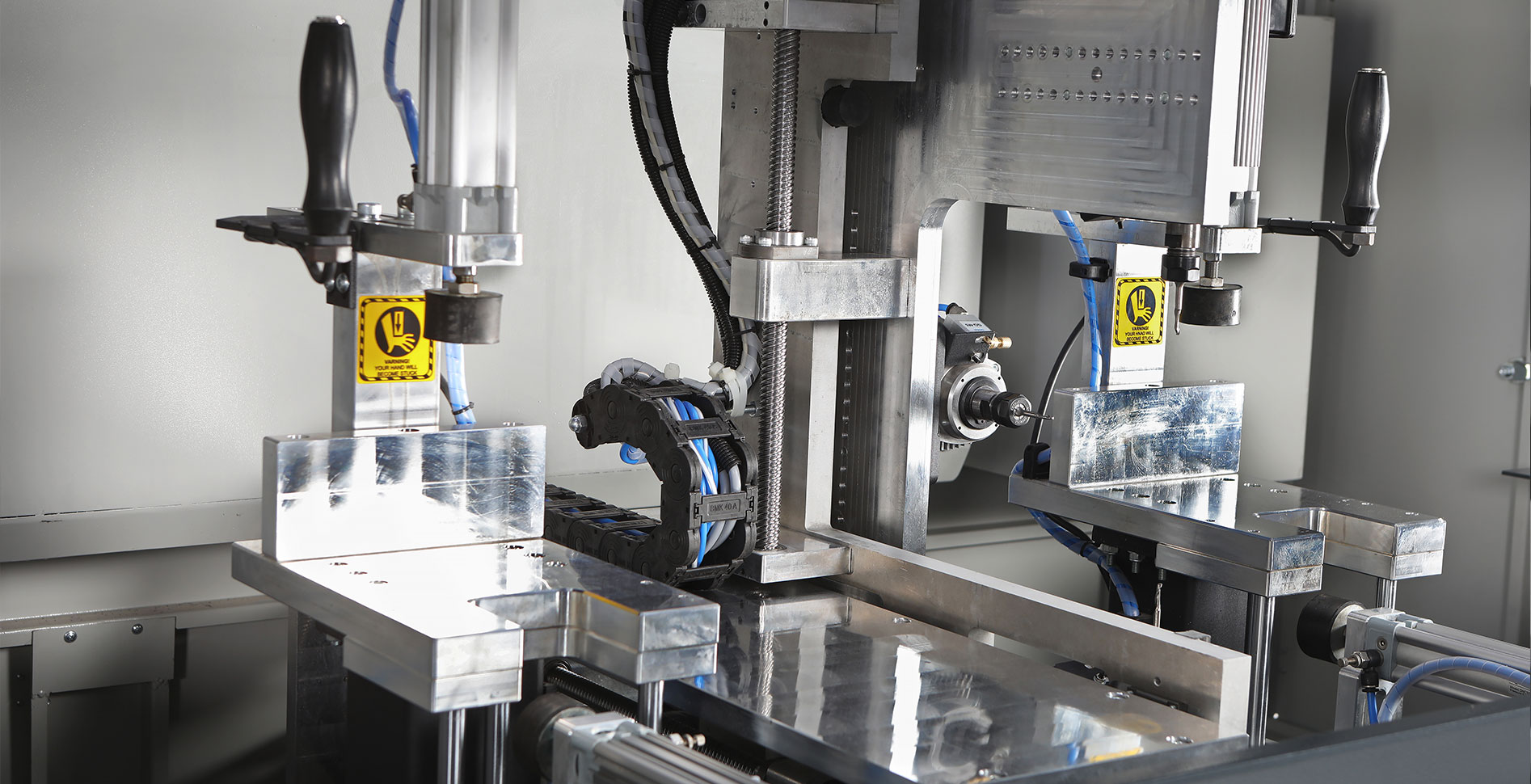

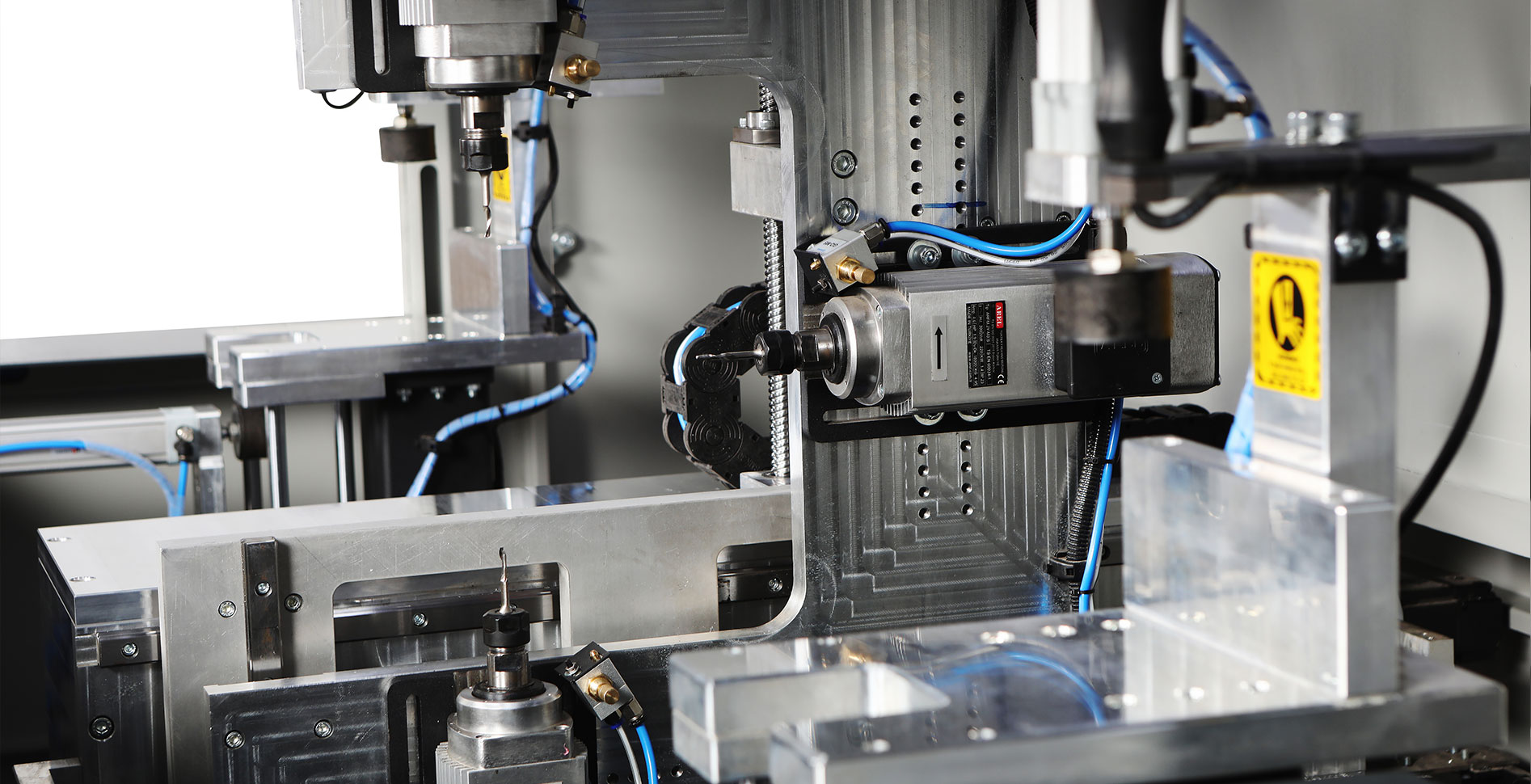

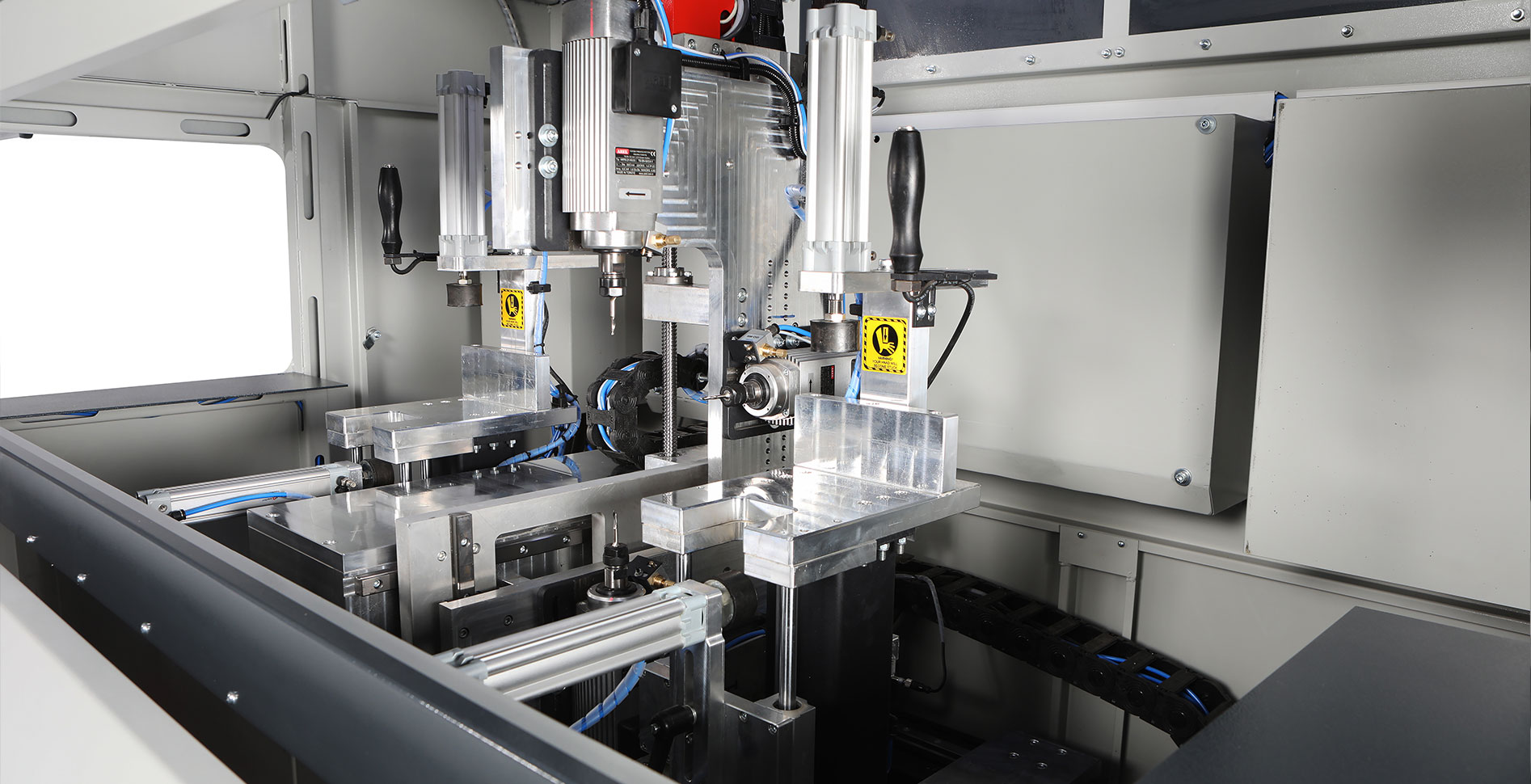

OST-500 Aluminum PVC 3 Axis CNC Processing Center
PVC Machine
- It is a machine that can perform door, wing, arm barrel and triple drilling operations on aluminum and PVC profiles.
-
This machıne can perform water sloot miling on uPVC Profiles
- Fast and precise machining of 3 sides of the profile without rotating

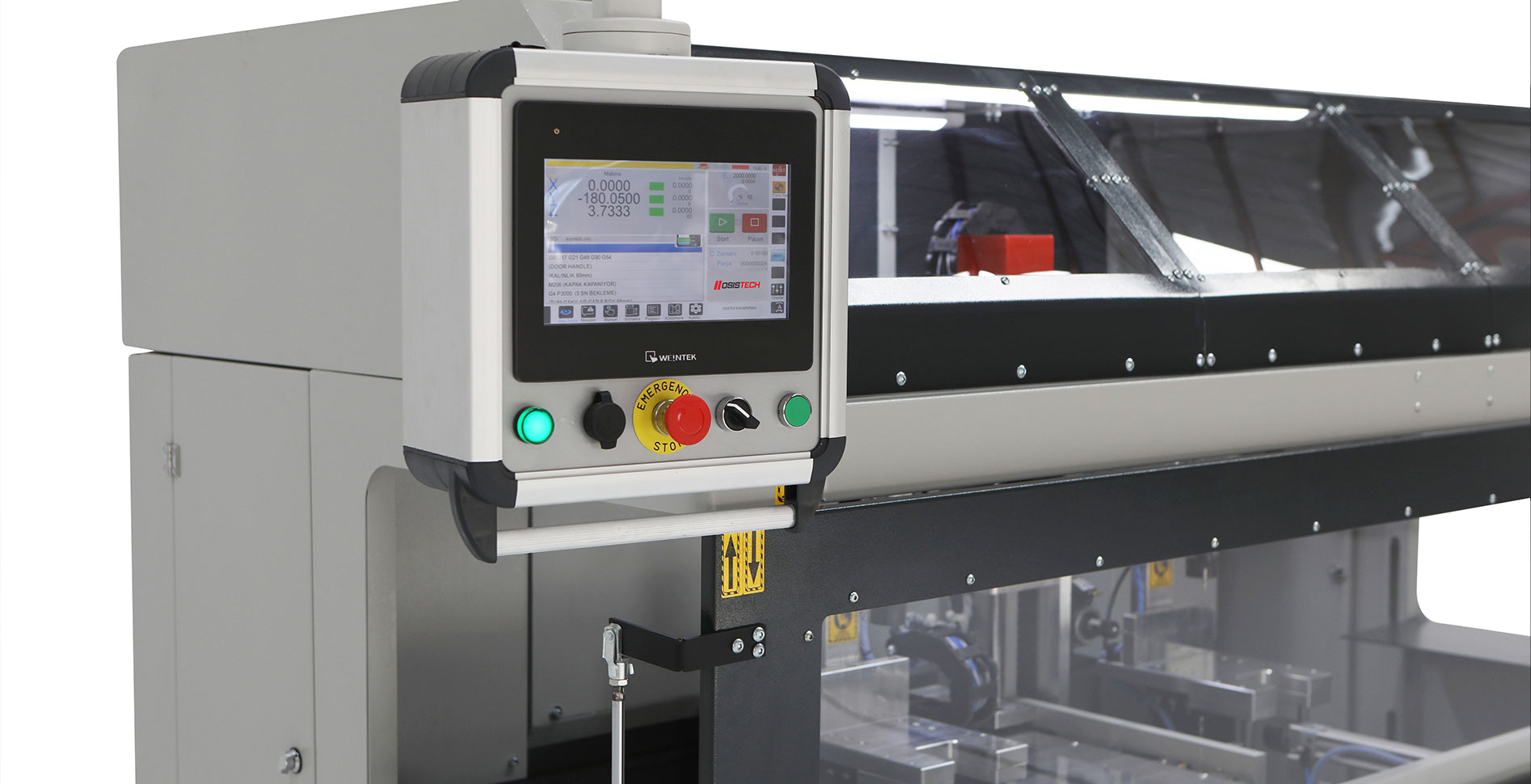

- CNC control 10" touch screen
- 3 independent axes (AXIS) and 3 motor operation feature
- Cooling system for aluminum profiles
- 1.5 mt right and left roller conveyor system, both with rulers and length stops
- Precise working thanks to linear guide system
- Ability to adjust speed settings for all operations
- Easy switching from touch screen to Aluminum PVC profile and automatic change of speed settings.
- Unlimited memory capacity
- Automatic protection cover for safety
- Servo motor system on X, Y, Z axes
| Power Supply | 230 V, 1 ph, 50-60 Hz |
| Total Power | 2,84 kw, 12,9 A |
| Air Pressure | 6-8 Bar |
| Air Consumption | 20 It. / min. |
| Router Spindle Speed | 18.000 rpm |
| Max. Profile Dimensions | 175×135 |
| Machine Width | 1550 mm |
| Machine Height | 2100 mm |
| Machine Length | 1750 mm |
| Machine Weight | 400 kg |
